TimeZone Level 3 Toolkits

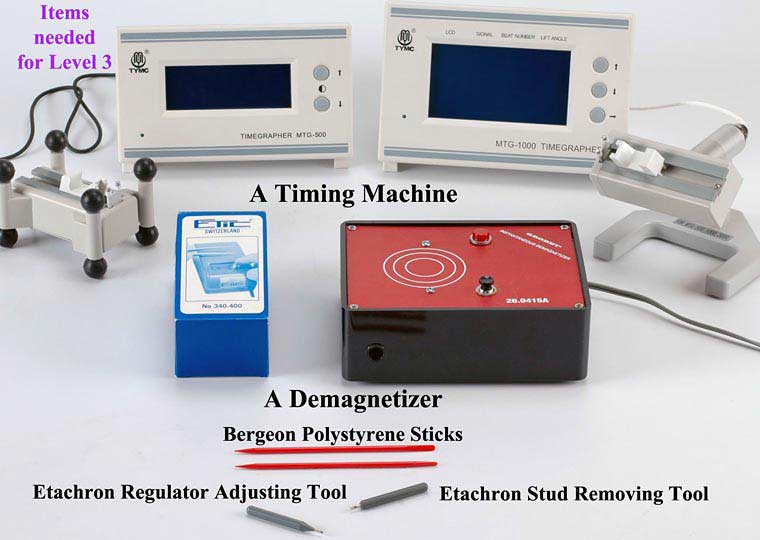

To begin, here are the recommended parts and tools you will need: 1) ETA Etachron Stud Removal Tool Part # AF-015600, 2) ETA Etachron Regulator Adjusting Tool Part # AF-015595, 3) Screwdrivers, 4) Tweezers, 5) Eye loupe (4x and 10x), 6) Movement holder, 7) Rodico, 8) Bergeon Polystyrene Redstick, Part # 6436, for assembling and disassembling the hairspring stud (Recommended!), 8a) Staking Tool or small 1.2mm screwdriver for pushing back the stud (Not as desirable as the Bergeon Polystyrene Redstick), 9) Extra balance w/spring Ebauches part # 721 might be needed, 10) Timing Machine and Demagnetizer (will be needed in Level 3 Part 3)


ETACHRON Regulator Adjusting Tool

Has small opening at the tip for adjusting the regulator pins. Overall length: 2.25 inches.

FB-015595
$34.95

order.gif  checkout.gif



ETACHRON Stud Removing Tool

Has small fork shaped tip for removing the stud block. Overall length: 2.25 inches.

FB-015600
$34.95

order.gif  checkout.gif



The New & Improved Otto Frei Multifunction Timegrapher Watch Timing Machine No. 1000

Test and displays Amplitude, along with displaying on the LCD screen the beat noise, rate in seconds per day is displayed as either fast or slow and the beat error in "ms" milli-seconds is also tested. Automatically discovers 9 different beat rates 12,000 14,400, 18,000, 19800, 21600, 25200, 28800, 36000 and 43,200 bph. Those 9 beat rates are automatically identified by this tester in just a few seconds or you can change and manually set the beat rate to be tested. This new improved 1000 Timer can test 56 different beat rates from super slow 3,600 BPH to ultra fast 43,200 BPH by manually selecting the rate. The lift angle is pre-set to default value of 52 degrees. If you know the correct lift angle of the watch you are testing you can manually set the correct lift angle to get the most accurate Amplitude measurement possible. Uses the standard microphone rotates to six different positions and opens to 50 mm wide. The power supply is single phase AC110V-250V, power consumption is about 8 watts. 1 year warranty.
Displays daily rate in seconds per day (+/-300 s/d), Accurate to (+/-1 s/d).
Amplitude: 100 - 350 degree, allowable tolerance (+/-3 degree).
Beat error: 0-4.0ms, allowable tolerance (+/-0.1ms).
Life angle: 30-60 degree, ex-works value: 52 degree.
While testing using the tester, you can hear the sound of the beat noise from a built in speaker, you can turn on and off the sound as you wish.

Now it is possible to own a timer that test for Amplitude for less than $110.00 dollars!

Amplitude reading is taken with the watch in the horizontal position (dial up or dial down) a good amplitude reading would be in the 275 to 315 range. While it is not necessary to know the correct lift angle of the balance to get an accurate timing reading to get an accurate Amplitude reading you do have to set the machine to the correct lift angle of the balance of the movement being tested for Amplitude. Comes with 1 year warranty.

OF-1000-TIMER
$109.99

order.gif  checkout.gif



$1,200.00 $849.00 On Sale!
TYMC Watch Tester MTG-4000A

The MTG-4000A is an improved version of the MTG-3000. The MTG-4000A has a color LCD Graphic Display and comes with the Improved Microphone that opens to 50 mm and rotates for testing in six different positions.

All machines come factory calibrated at 18.0000 mhz. The frequency, may drift after a few years and by using a frequency meter you can recalibrate the timer to 18.0000 mhz. Frequency meter not supplied with machine.

MTG-4000
Regular Price $1200.00, Now on Sale $849.00





$1,400.00 $1,099.00 On Sale!
TYMC Watch Tester MTG-5000H

High definition color display.

All machines come factory calibrated at 18.0000 mhz. The frequency, may drift after a few years and by using a frequency meter you can recalibrate the timer to 18.0000 mhz. Frequency meter not supplied with machine.

The timegrapher MTG-5000H is used to test the performances of mechanical watches. It is a high-grade model of the MTG-H series which has higher test accuracy and more powerful functions.

There are the displays of diagrams of beat noise, the numerical values of rate, amplitudes and beats errors, adding the maximum differences of rates and amplitudes among various positions when executing programmed testing. It serves the function of long-term monitoring of rate and amplitude. 960 dots extraordinary long diagram of beat noise can be displayed on the LCD. Test with +/- 0.2 seconds per day high degree of accuracy can be carried out. There is perfect print function, the diagram and values mentioned above all can be printed by heat sensitive printer (sold separately). It serves the functions of multi-rate display, time and calendar display, acoustic stimulation of beat noise. This tester is designed as an all-in-one structure. The machine, the power adapter, and the microphone are all combined onto one chassis. The new flip-screen protects the display from scratches and dusts when not in use.

MTG-5000H
$1,099.00

order.gif  checkout.gif



Standard Balance Complete Found in ETA 2801-2, 2804, 2836-2 & More Sold Without Balance Bridge

ETA 28,800 BPH Balance Complete to fit these popular calibers.

ETA: 2801, 2801-1, 2801-2, 2804, 2804-1, 2804-2, 2805, 2810, 2811, 2816, 2816-1, 2821, 2821-1, 2821-2, 2821R, 2824, 2824-1, 2824-2, 2824-A2, 2824R, 2825, 2825R, 2830, 2830R, 2831, 2831R, 2834-1, 2834-2, 2836, 2836-1, 2836-2
Benrus K61D21
Bulova 1373.30, 1373.11, 1373.30, 1373.50, 1412.11, 1413.10, 1413.11, 1413.30
Tissot 3051, 3052, 3103, 3104, 3108, 3152.

Standard Balance Completes are sold without balance bridge attached. this is the normal way all balance completes are sold.

721/2020
$58.95





ETA 6497-1 Balance Complete Without Bridge

The Balance Complete, consist of the balance wheel, hairspring and staff together in one unit.


The bridge, screw, shock device and regulator devices are sold separately.

721/2236
$49.60
order.gif  checkout.gif



Bergeon Polystyrene Red Stick

Polystyrene stick with pointed end on one side and flat end on the other. Length is 135 mm with 4 mm diameter.

BERG-6436
$2.96





Inexpensive Demagnetizer for Tweezers and Parts

 The Etic, instantaneous (capacitance) demagnetizer is relatively powerful and compact. Use it to demagnetize watch parts, and tools. This unit may require a few operations to completely demagnetize larger tools or parts. If you can spend a little more, look at # FB-119 for a more powerful demagnetizer.

Use it to demagnetize samll parts and tweezers. You may need to push the button and rotate the item a few times. Always unplug and disconnect the unit from the main power supply, when not in use. Works, with both 110 volts and 220 volts.



FB-118
$55.95





Top-Quality Demagnetizer for Watches and Parts

 This instantaneous demagnetizer works completely on tools, watches, and watch hole in the front allows the insertion of tweezers, screw drivers, and other long, thin tools. I use one constantly, parts instantaneously with the push of the buttom. The and routinely demagnetize a watch when I put it on in the morning. Can't hurt, right? This capacitance unit won't overheat like coil units and is much more convenient to use. 115 volts 50-60 cycles.

Back In Production!
Now available and ready to ship.
Thank you, Otto Frei & TZToolShop


FB-119
$315.00

order.gif  checkout.gif



Level 3 Toolkit # 1

Kit number one will get you started and you will be able to adjust the rate and beat using the Watch Tester Timer number OF1000-TIMER and demagnetize the movement with the FB-118 Inexpensive Demagnetizer. Also included in the kit is one each of Bergeon Polystyrene Red Stick BERG-6436, ETACHRON Stud Removing Tool FB-015600 and the ETACHRON Regulator Adjusting Tool FB-015595. Toolkit a la carte total $238.73, as a kit you pay only $224.00

TZL3-KIT1
$224.00





Level 3 Toolkit # 2

Kit number two will get you started and you will be able to adjust the rate and beat using the Watch Tester Timer number OF1000-TIMER and demagnetize the movement with the FB-119 Top-Quality Demagnetizer for Watches and Parts. Included in the kit is one each of Bergeon Polystyrene Red Stick BERG-6436, ETACHRON Stud Removing Tool FB-015600 and the ETACHRON Regulator Adjusting Tool FB-015595. Toolkit a la carte total $488.79, as a kit you pay only $469.80

TZL3-KIT2
$529.95





High Amperage Pass Through Demagnetizer

The unit has superior field strength due to the relatively high amperage that it draws. The consequence is fairly rapid heating of the field coil. It is recommended that a single duty cycle be limited to 5 seconds on and 3 minutes off, or three 5 seconds cycles on and 10 minutes off. This unit is wired with a thermal protector. If the above duty cycles are not observed, the thermostat may open and the unit will not operate until it has cooled sufficiently. Features a 1 1/2" X 3" opening.

FB-122
$72.50
