Level One Tool Kit Option Items

Please see the Shop On-Line page for links to all the TZWS tool items. This page just covers and is another place to see the items, which were mention on the Information About Tool Kits page at the TZWS.


First-Quality Spring Bar Tool

 The FB-504 comes with one tip that is reversible in the handle: a small fork on one end and a pin on the other. The other tip is a large fork, which is the most useful end for removing spring bars quickly on leather straps. The large folk end is just about the only tool which will remove the bars on Seiko rubber divers bands. Order an extra set of replacement tips and use the large fork in one end of the handle and the pin pusher in the other end. The small fork grabs the most stubborn of spring bars on the backside of metal bracelets and makes removal easy and reliable. The pin tip is for pushing out open-lug spring bars and press fit bracelet pins.

FB-504
$24.80

order.gif  checkout.gif



First-Quality Spring Bar Tool With Bergeon's Name Stamped On It

  This is the exactly the same tool as the FB-504, which sells for $24.80 and made at the same factory in Switzerland. The only things different is this tool has the name Bergeon Stamped on it and price $37.94 instead of $24.80 for the FB-504. This tool is for those who have to have tools stamped with the Bergeon name. Please be aware that others might sell this spring bar tool and call it the Bergeon tool, however it does not have the Bergeon name or part number stamped on it.

BERG-6111
$37.95

order.gif  checkout.gif



Bergeon Pin Vise # 5860

This is a very normal quality pin vise from Bergeon with two reversible chucks and is good for the watchmaker who is not quite ready yet to get the great First-Quality Bergeon Pin Vise Set at this time.

Pin Vise 5860 has opening from 0-2.1 on one end and 1.9-3 mm on the other and the lenght is 108 mm, about 4 inches.

BERG-5860
$22.05

order.gif  checkout.gif


Bergeon Pin Vise # 5679

This is a very normal quality pin vise with two chucks. Opening from 0-1.5, 1.9-3 mm, length 115 mm.

BERG-5679
$22.05

order.gif  checkout.gif




Bergeon Hand Setting Tool 7404-2

Made for larger hands on both mechanical movements and chronograph quartz watches. Double sided, on one end the diameter of the hole is 0.80 mm and the other end is 1.50 mm. This tool is a lifesaver and a timesaver and will also help with hole sizes smaller and larger than the listed sizes.


FB-409
$19.80





Bergeon #6 Presto Hand Remover White Handle

 This Presto is intended for removal of sweep seconds hands, but is excellent for the hour and minute hands of many wristwatches (as well as subsidiary hands like power reserve, date, etc). This is a very useful tool for most watchmakers and along with the Presto #1 (FB-400) and Bergeon 6016 (FB-410) is among my favorites. I use this Presto #6 more than any other hand remover.

FB-405
$52.50

order.gif  checkout.gif



Bergeon #1 Presto Hand Remover Black Handle

 Sized for most wristwatches, this tool provides twin blades that slip under the hub of the hand and a plunger on top that holds the hand once removed. As the sides of the tool are squeezed, the nylon blocks on the dial descend, push on the dial surface, and lift the hand straight off the pinion. I use this tool regularly. I thin down and polish the blades for use on small wristwatches so that they are as thin and smooth as possible. Always protect the dial when using this or any other hand-remover tool. The Presto #6 (FB-405) and Bergeon 6016 (FB-410) are two other very useful tools for wristwatches. If you're going to have only one hand remover for contemporary wristwatches, make it the Presto #6 (FB-405).

FB-400
$49.95

order.gif  checkout.gif



Euro Tool Stem Cutting Plier

Side cutting pliers with tungsten carbide jaws for cutting watch stems.

PLR-78100
$26.95





New Bergeon Case Cushion With Plastic Ring

Made by Bergeon under the request of Rolex®, who were concerned that the metal ring of the old cushion could somehow scratch the case.

5394P
$25.95

order.gif  checkout.gif

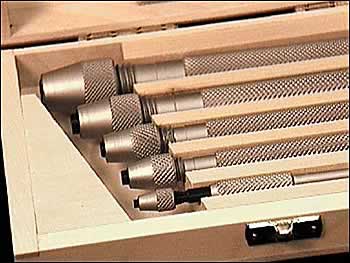

Bergeon 30026A Pin Vise Set, First-Quality

 This assortment of first-quality pin vises is a must for any serious watchmaker who can afford them. These often-used tools are beautifully machined and finished. Each handle except the smallest size is provided with two different bits, one in use, the other in the back of the handle. This is another one of those indispensables.

FB-762
$219.00

order.gif  checkout.gif



Good Quality Pin Vise Set

 This Bergeon Swiss-made pinvise set includes four handles, each of which carries two bits (one in the back end of the handle). The pin vise is a basic and essential tool for the watchmaker, and this is a very decent set at a decent price. Constructed of nickel-plated brass, this set is bettered only by Bergeon's first-quality set, FB-762.

FB-717
$78.00

order.gif  checkout.gif



Bergeon Pin Vise for Holding Hairsprings

Bergeon 4072

FB-742
$32.00

order.gif  checkout.gif



Sliding-Lock Pin Vise

 This Bergeon pin vise uses a slide lock for the steel jaws. The body of the tool is nickel-plated brass. The opening is 0.0 to 1.5 millimeter. Sometimes the conventional pinvise with rotating collar is difficult to use in one-handed operation. The sliding-lock design of this tool is the perfect, sometimes indispensable, solution. I have one and use it a lot.

FB-763
$19.65

order.gif  checkout.gif



Green ScrewBall Case Opener

You might never use another screw back case opener after you try one of these special balls to open screw back cases! Just hold the watch on one hand and the ScrewBall in the other hand. Press the ScrewBall against case back and start screwing the back off. It really is that simple and does work very well. Everyone who opens screw back cases should have one of these ScrewBalls.

When using the ScrewBall case opener you no-longer have to buy a case vise, which also saves you even more money!

OFREI-GREEN-CASEBALL
$8.95

order.gif  checkout.gif
Quantity   1 - 11     12 - 47     48 - 95     96+
Price $8.95 $8.50 $8.05 $7.60


Basic Level One Options Kit

This options kit might take some of the wallet pain of buying all the optional items at once. After all you are just taking a level one watch repair lessons on-line and you haven't even taken the watch apart yet! On the other hand all of these items are quite basic and if you do continue to fool with watches, then you will need all these items and much more. As it stands now it is possible to put on and take off hands with some of the items in the tool kit, however the products here will greatly reduce the chances of damage and will help a lot in the ease of getting the job done. You might have a cutter of some type already that you can use to cut the stem, and also a file to file off the bur left behind after you cut the stem. We already cracked open the back the level one cases we supply, however the ScrewBall case opener is a product you will always need. You can use a cloth instead of the case cushion.

Basic Level One Options Kit

Bergeon Pin Vise 5860, Bergeon Hand Setting Tool 7404-2, Bergeon #1 Presto Hand Remover, First-Quality Spring Bar Tool, Stem Cutting Plier, two 18 mm spring bars and one 18 nylon strap.

TZWS-OPTION-BASIC
$124.95

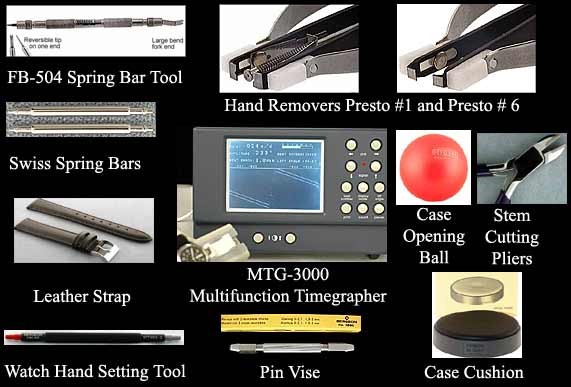

Deluxe Level One Options Kit

Bergeon Pin Vise 5860, Bergeon Hand Setting Tool 7404-2, Bergeon #6 Presto Hand Remover, Bergeon #1 Presto Hand Remover, First-Quality Spring Bar Tool, Green ScrewBall Case Opener, Stem Cutting Plier, Bergeon 5394-P Case Cushion, 2 Swiss Made 18 mm Spring Bars, 1 Leather Strap.

TZWS-OPTION-DELUXE
$198.95

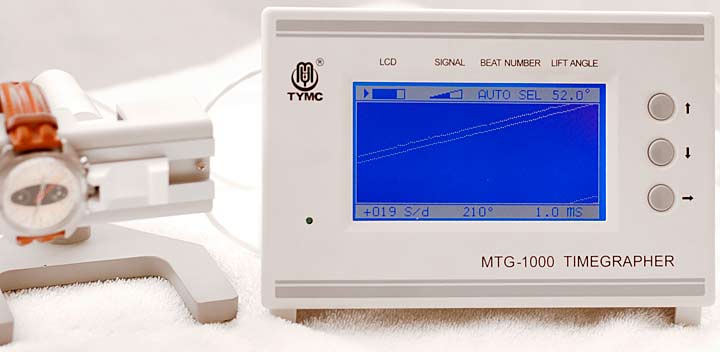

The New & Improved Otto Frei Multifunction Timegrapher Watch Timing Machine No. 1000

Test and displays Amplitude, along with displaying on the LCD screen the beat noise, rate in seconds per day is displayed as either fast or slow and the beat error in "ms" milli-seconds is also tested. Automatically discovers 9 different beat rates 12,000 14,400, 18,000, 19800, 21600, 25200, 28800, 36000 and 43,200 bph. Those 9 beat rates are automatically identified by this tester in just a few seconds or you can change and manually set the beat rate to be tested. This new improved 1000 Timer can test 56 different beat rates from super slow 3,600 BPH to ultra fast 43,200 BPH by manually selecting the rate. The lift angle is pre-set to default value of 52 degrees. If you know the correct lift angle of the watch you are testing you can manually set the correct lift angle to get the most accurate Amplitude measurement possible. Uses the standard microphone rotates to six different positions and opens to 50 mm wide. The power supply is single phase AC110V-250V, power consumption is about 8 watts. 1 year warranty.
Displays daily rate in seconds per day (+/-300 s/d), Accurate to (+/-1 s/d).
Amplitude: 100 - 350 degree, allowable tolerance (+/-3 degree).
Beat error: 0-4.0ms, allowable tolerance (+/-0.1ms).
Life angle: 30-60 degree, ex-works value: 52 degree.
While testing using the tester, you can hear the sound of the beat noise from a built in speaker, you can turn on and off the sound as you wish.

Now it is possible to own a timer that test for Amplitude for less than $110.00 dollars!

Amplitude reading is taken with the watch in the horizontal position (dial up or dial down) a good amplitude reading would be in the 275 to 315 range. While it is not necessary to know the correct lift angle of the balance to get an accurate timing reading to get an accurate Amplitude reading you do have to set the machine to the correct lift angle of the balance of the movement being tested for Amplitude. Comes with 1 year warranty.

OF-1000-TIMER
$109.99

order.gif  checkout.gif



Deluxe Level One Options Kit with OF-1000 Timing Machine

Otto Frei Multifunction Timegrapher Watch Timing Machine No. 1000, Bergeon Pin Vise 5860, Bergeon Hand Setting Tool 7404-2, Bergeon #6 Presto Hand Remover, Bergeon #1 Presto Hand Remover, First-Quality Spring Bar Tool, Green ScrewBall Case Opener, Stem Cutting Plier, Bergeon 5394-P Case Cushion, 2 Swiss Made 18 mm Spring Bars, 1 Leather Strap.

OF1000-DELUXE-KIT
New Lower Price $309.93
On Sale Now: $299.98





Loctite 222

For screws light sticking. Low strength threadlocker. Designed for precision metal fasteners under 3/4". Protects threads from rust and corrosion. Removable with hand tools.

Loctite 222
$31.95





Package of 5 Complete Incabloc Setting use them for Parts and Practice

We have found a large amount of the complete Incabolc setting for the Roamer 466. While this setting is not popular both the Incabloc Cap Jewel 222.11 and the Incabloc Shock Spring 270.03 found in the setting are popular parts and are used in many different movement using Incabloc Shock Systems.

Use for Practice!

Now you have the chance to practice on your technique in the removal of the spring and the cap jewel and reinstalling them without the fear and cost of replacing lost parts while working and learning this skill on a working watch movement. Place the setting in a piece of Rodico on your bench and you can practice your skill at installing and removal.

Buy them for the Parts!

The Cap Jewel #222.11 is used on many different calibers as both the upper and lower balance cap jewel. This cap jewel Incabloc #222.11 is also the replacement cap jewel for the Incabloc #222.21. Here is a list of some of the makes and calibers using the Incabloc 222.11 cap jewel: A. Schild 1526, 1758, 1759, 1775, FEF Fabrique d'Horolgerie de Fontainemelon 6640, FHF Fabrique d'Horolgerie de Fontainemelon, 57-21, 59-21, 66, 665, Peseux 7000, 7010, 7016, 7020, Certina 13-20, 13-21, 13-22, Ebel 31, 52, 97, Enicar 672, 678, 679, 680, 690, 690B, 692, 692B, GP Girard-Perregaux, 25.09, 25.19, 25.29, 26.09, 26.19, 50.0, 50.1, 51, 51.09, 51.19, 54, 54.19, 56, 56.09, 56.19, 56.26, 67, 67.09, 67.19, 63.3, 75.09, IWC International Watch Co. 44, 431, 432, Juvenia 7000, 7016, 602, 865, 1115, Longines 450, 510, Mido 0620, Moeris 220, 400, Movado 4, 7, 20, 421, 423, 425, 427, 1110, 1724C, 245, 246, 1425, 1427, MSR D3, D31, K5, K51, Nivada 98, Omega 483, 484, 486, 620, 630, 640, 650, 660, 661, 670, 730, 1000, 1001, 1002, 662, 663, 683, 684, 685, 710, 711, 712, Lower Cap Jewel 222.11 on Patek Philippe 16-250, Upper and Lower For ROAMER 448, 449, 466, 467, 468, 469, 475, 481, Tissot 530, 630-1, 709, 709-1, 709-2, 781, 782, 783, 784, Lower only 2141, 2142 2403, 2700, Upper & Lower Universal 03, 520, 04, 542, 550, 05, 09, 24, 1-24, 25, 1.25, 2.24, 2.5, 2.26, 2.27, 400, 401, 501, 506, 540, 541, 800, 42, 1-42, 2-42, 820, 72, 72, Wittnauer 3W, 3W-1, 10M, 10ML, C11M, C11N-1, Zenith 4, Lower Only For 405, & 408, 1110, 1510, 1520, 1724, 2310, Lower only 16.5, & 30.5, upper & lower 2320, Otero 64

The Incabloc Shock Spring #270.03,is used on many different calibers as both the upper and lower balance Incabloc Shock Spring. This Incabloc Shock Spring #270.03 is also the replacement Shock Spring for the Incabloc #270.02. Here is a list of some of the makes and calibers using the Incabloc Shock Spring #270.03: A. Schild 1526, 1758, 1759, 1775, FEF Fabrique d'Horolgerie de Fontainemelon 6640, FHF Fabrique d'Horolgerie de Fontainemelon, 57-21, 59-21, 66, 665, Peseux 7000, 7010, 7016, 7020, Certina 13-20, 13-21, 13-22, Ebel 31, 52, 97, Enicar 672, 678, 679, 680, 690, 690B, 692, 692B, GP Girard-Perregaux, 25.09, 25.19, 25.29, 26.09, 26.19, 50.0, 50.1, 51, 51.09, 51.19, 54, 54.19, 56, 56.09, 56.19, 56.26, 67, 67.09, 67.19, 63.3, 75.09, IWC International Watch Co. 44, 431, 432, Juvenia 7000, 7016, 602, 865, 1115, Longines 450, 510, Mido 0620, Moeris 220, 400, Movado 4, 7, 20, 421, 423, 425, 427, 1110, 1724C, 245, 246, 1425, 1427, MSR D3, D31, K5, K51, Nivada 98, Omega 483, 484, 486, 620, 630, 640, 650, 660, 661, 670, 730, 1000, 1001, 1002, 662, 663, 683, 684, 685, 710, 711, 712, Upper and Lower For ROAMER 448, 449, 466, 467, 468, 469, 475, 481, Tissot 530, 630-1, 709, 709-1, 709-2, 781, 782, 783, 784, Upper & Lower Universal 03, 520, 04, 542, 550, 05, 09, 24, 1-24, 25, 1.25, 2.24, 2.5, 2.26, 2.27, 400, 401, 501, 506, 540, 541, 800, 42, 1-42, 2-42, 820, 72, 72, Wittnauer 3W, 3W-1, 10M, 10ML, C11M, C11N-1, Zenith 4, 1110, 1510, 1520, 1724, 1724C, 1725, 1725C, 2310, 2320, Otero 64

Incabloc complete for parts and practice. Package of 5.

FB-INCA-ROA466
$5.69
order.gif  checkout.gif



Parts for SELLITA SW210-1
