Hands And Accessories Page for TZWS Movements



Dials For TZWS Movements



Cases for TZWS Movements



Leather Straps for the 18 mm lug size Case #1



Watch Hands For TimeZone Watch School Movements



Link To TZ Watch School Parts Page



Time Zone Watch School Tool Kits



Case Style #5 Fits ETA 2824-2 and 2836-2



Bergeon 6938 Dial Protection

For those who don't want to scratch and damage their dials while removing hands, this Bergeon dial protector is the tool to use. It's made of resistant synthetic material. Thickness of 0.15 mm. Color is off white.

BERG-6938
$1.50


order.gif  checkout.gif
Quantity   1 - 9     10 - 99     100+
Price $1.50 $1.20 $1.00
On Sale! $1.30 $1.08 $0.91


Extra Long 20 mm Stem for ETA 2801-2

Also for ETA 2804-2, 2824-2, 2836-2, 2846 2821-2, 2824-A2, 2834-2, 2840, 2842, & 2846

Longines 633.5, 636.5, 639.2, 640.1, 641.1

401/1543
$4.95

order.gif  checkout.gif
Quantity   1 - 2     3+
Price $4.95 $3.90




Case Style #4 Fits ETA 2801-2, 2804-2 and the 2824-2



Bergeon Hand Setting Tool 7404-2

Made for larger hands on both mechanical movements and chronograph quartz watches. Double sided, on one end the diameter of the hole is 0.80 mm and the other end is 1.50 mm. This tool is a lifesaver and a timesaver and will also help with hole sizes smaller and larger than the listed sizes.


FB-409
$19.80





Case Openers and Holders



Hand & Wheel Removers - Setters



Inexpensive Swiss-Made Case Holder

 This low-cost Bergeon adjustable case holder uses spring-loaded plastic jaws. The unit fits in your bench vise, to help with opening cases.

FB-205
$26.50

order.gif  checkout.gif



Jaxa Swiss-Made Case Holder (Small)

 This excellent quality 4-pin, Swiss-made, Jaxa case holder (and similar models below) is indispensable for holding a watch while opening the back with a hand wrench. It is also useful for holding the watch on the bench while working on the cased movement. This unit, like all our case holders, will not mar the case. Bergeon lists that this holder has a maximum capacity of 35 MM, but we have been able to fit our 41 mm case onto the holder. We have also tested cases up to 44 mm in diameter.

FB-200
$60.75

order.gif  checkout.gif


Stem for ETA 2801-2, 2804-2, 2824-2, 2836-2 & 2846

Regular length 16 mm stem is the one that you will need for most watch cases that are 40 mm or less in diameter.
Also for ETA 2821-2, 2824-A2, 2834-2, 2840, 2842, 2846

Longines 633.5, 636.5, 639.2, 640.1, 641.1

401/1029
$3.95

order.gif  checkout.gif
Quantity   1 - 2     3+
Price $3.95 $2.90



Stem for FM(ST)97, ST 96 & Others

Stem for Standard & Font movements. Font FHF 97, Standard 97, FHF 974, Standard 974, Standard 96 and Standard 96-4

200/1728F
$5.95

order.gif  checkout.gif



Top Glass Gasket For the See-thru Back Case

Works for Case #1 only.

Top Gasket
$1.25

order.gif  checkout.gif




Set of Top & Bottom Glass Gaskets For the See-thru Back Case

Works for Case #1 only.

Top & Bottom Gaskets
$2.00

order.gif  checkout.gif


Bottom Glass Gasket For the See-thru Back Case

Works for Case #1 only.

Bottom Gasket
$1.25

order.gif  checkout.gif



Top Sapphire Glass 1.3 mm Thick For See-thru Back Case

TOP-SAPPHIRE
$18.00

order.gif  checkout.gif




Bottom Sapphire Glass 1.12 mm Thick For See-thru Back Case

OUT OF STOCK

TOP-SAPPHIRE
$12.00



Set of Two Sapphire Crystals Top & Bottom For See-thru Back Case

Sapphire Top & Bottom
$30.00

order.gif  checkout.gif




LG Hand Wrench for Screw-Case Backs

 Among the hand-held wrenches, this is probably the best. Supplied with four different sets of bits, this triple-bit wrench is American made and of high quality. Like all hand wrenches, the LG should be used with one of our case holders. This stabilizes the watch and reduces the liklihood of slipping. Another advantage of the LG Wrench is that it is designed so it can be used with the LG Openall CO-650 shown below. When used with the CO-650 it is almost impossible to slip and scratch the case back.

Comes with four sets of three bits and replacement bits are available if you ever need them. Will open to about 36-38 mm distance between post.



FB-209
$79.95

order.gif  checkout.gif


Economy Case Wrench, without Box.

The ban is over! Please see above product description, for beginners to try on old beat-up Watches.

FB-241
$11.95

order.gif  checkout.gif




Bergeon #6 Presto Hand Remover White Handle

 This Presto is intended for removal of sweep seconds hands, but is excellent for the hour and minute hands of many wristwatches (as well as subsidiary hands like power reserve, date, etc). This is a very useful tool for most watchmakers and along with the Presto #1 (FB-400) and Bergeon 6016 (FB-410) is among my favorites. I use this Presto #6 more than any other hand remover.

FB-405
$52.50

order.gif  checkout.gif



Bergeon #1 Presto Hand Remover Black Handle

 Sized for most wristwatches, this tool provides twin blades that slip under the hub of the hand and a plunger on top that holds the hand once removed. As the sides of the tool are squeezed, the nylon blocks on the dial descend, push on the dial surface, and lift the hand straight off the pinion. I use this tool regularly. I thin down and polish the blades for use on small wristwatches so that they are as thin and smooth as possible. Always protect the dial when using this or any other hand-remover tool. The Presto #6 (FB-405) and Bergeon 6016 (FB-410) are two other very useful tools for wristwatches. If you're going to have only one hand remover for contemporary wristwatches, make it the Presto #6 (FB-405).

FB-400
$49.95

order.gif  checkout.gif


Sweep Second Hand in Gold
$2.00
FB-9061
Fits both the ETA 2836-2 and the FM(ST)97.
These hands are a little long and have to be cut to size.
order.gif  checkout.gif



Hands, Silver Square Luminous
$4.00
FB-9053
Minute Hole 0.90 mm, Hour Hole 1.50 mm. These hands fit movements ETA 2801-2, 2804-2, 2836-2, and FM(ST)97 all which have been used by the TZWS movements. Also fits hundreds of other calibers of movements which have 90/150 hands sizes.
order.gif  checkout.gif



Pink Gold Color - Rose Gold Color Dauphine Shape, Pair Hour Minute Watch Hands

Some call this color Pink Gold others call the color Rose Gold, both names are correct. These pink gold - rose gold watch hands come in the popular 1.50 millimeter hour hole size and the 0.90 millimeter minute hole size found on many ETA movements like ETA 2801, ETA 2836-2, ETA 2824-2, ETA 2804-2.

Facetted Dauphine Style Watch Hands, Pink Gold Color - Rose Gold Watch Hands
Hole size Minute Hand
0.90 by length 12mm
Hole size Hour Hand
1.50 mm by length 8.5 mm.

HAN-6421
$4.00


Quantity   1 - 2     3 - 11     12 - 99     100+
Price $4.00 $3.20 $2.30 $1.85

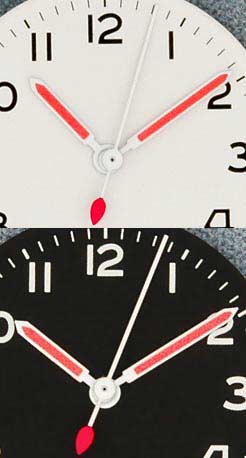

Sweep Second Hand in Red
$2.00
FB-9060
Fits movements ETA 2801-2, 2804-2, 2836-2 and FM(ST)97 all which have been used by the TZWS movements. This hole size .25 mm can be open or closed to work on any watch that uses a .24, .25 or .26 mm hole size sweept second hand.
Hole size 0.25 mm by 13 mm long.
order.gif  checkout.gif


Sweep Second Hand in White
$2.00
FB9064
Fits both the ETA 2836-2 and the FM(ST)97.
These hands are a little long and have to be cut to size.
order.gif  checkout.gif

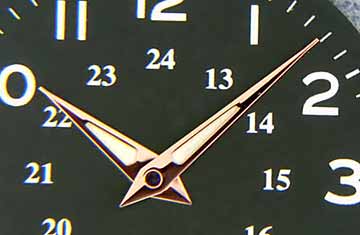

Pink Gold - Rose Gold Color, Luminous Dauphine, 1 Pair Hour and Minute Watch Hands

With Lt. Green 8 Hour Japanese Luminous Material
Facetted Luminous Dauphine Style Watch Hands, Pink Gold Color - Rose Gold Watch Hands
Hole size Minute Hand
0.90 by length 12mm
Hole size Hour Hand
1.50 mm by length 8.5 mm.


90/150
12 x 8.5 mm

HAN-6420
$4.00


Quantity   1 - 2     3 - 11     12 - 99     100+
Price $4.00 $3.20 $2.30 $1.85



Silver Tone 0.90/1.50 Green Luminous Sport Hand

Hole hand 1.50 hole size, 9.50 mm long
Minute hand 0.90 hole size, 13.5 mm long

HAN-6381
$8.60





Luminous Sports Hands Silver 90/150, 13.75 x 9 mm

Minute hole size : 0.90 mm length 13.75 mm
Hour hole size : 1.50 mm length 9.0mm

Light Green tinted 8 hour Japanese luminous material.

HAN-7076
$4.00


Quantity   1 - 2     3 - 11     12 - 99     100+
Price $4.00 $3.20 $2.30 $1.85

Type in any keywords of a description or a name below to find a product.

If you have questions please call me at 510 599 4890. For those outside the USA the country code is 1.
Thanks, Bob Frei
