Movements - 1


Sellita Swiss Made SW210-1 Incabloc 19 Jewels Watch Movement

The Sellita SW210-1 is an improved clone version of the obsolete ETA 2801-2 movement. This manual wind watch 11.5 ligne movement, features 19 jewels and Incabloc shock system complete with a balance hack (stop lever). Most parts are interchangeable with the ETA 2801-2. Hand sizes Minute 0.90 mm, Hour 1.50 mm and sweep 0.25 mm. 28,800 BPH, lift angle of balance 50. See the link to the page TZWS Info, Parts & More for the page "Parts for ETA 2801-2, 2804-2, 2824-2, 2836-2 and 2846"

Click here to download the Sellita SW210-1 technical sheet.


order.gif  checkout.gif
Quantity   1 - 24     25 - 99     100+
Price $129.00 $109.00 $101.00


ETA 2824-2
No Name on Rotor

11 1/2 ligne, 25 jewels, Incabloc Novodiac shock protection, automatic, sweep seconds, date at 3 o'clock. Hand sizes are 90/150/25, 28,800 BPH

ETA 2824-2 NP-25 Jewels
Regular Price $256.00
Now on Sale! $239.00

order.gif  checkout.gif

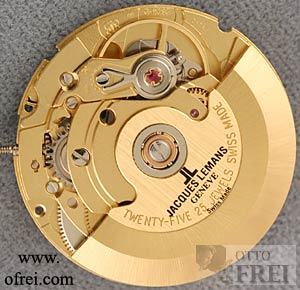

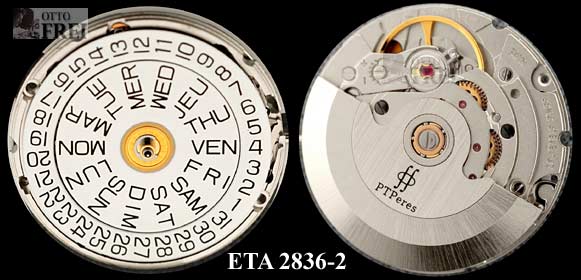

ETA 2836-2 Nickel Plated Watch Movement

11.5 ligne, 25 jewels, Incabloc Novodiac shock protection, automatic, sweep seconds, day and date at 3 o'clock. This is the real thing, 25 jewels and complete with the stop lever (hack).

The ETA 2836-2 is the watch movement that the Time Zone Level School Level 2 lessons are based on.


order.gif  checkout.gif

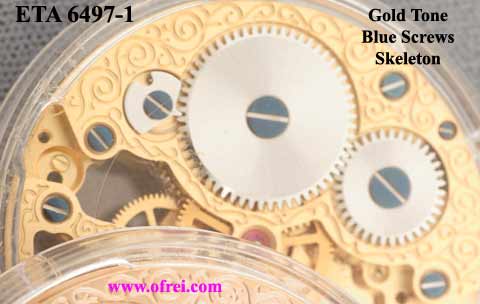

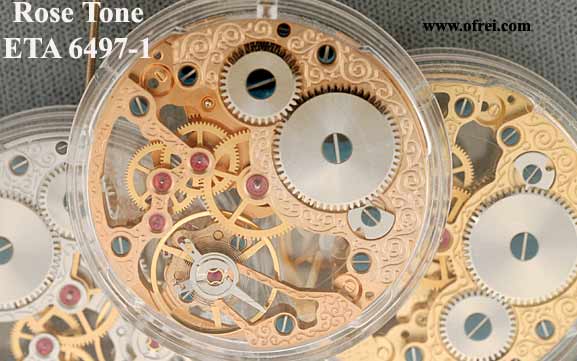

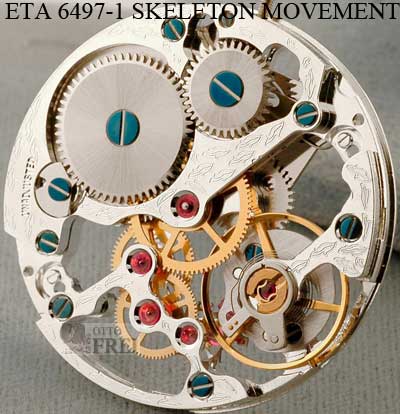

ETA 6497-1 Watch Movement

ETA, the main watch movement maker in Switzerland, is the owner of the Unitas name and made the Unitas 6497 and 6498 for years. This is the new re-designed ETA stamped 6497-1, version. This 16.5 ligne pocket watch movement, 17 jewels and Incabloc Novodiac shock protection is a workhorse movement and is sure to be produced for many decades to come. ETA 6497-1 is a Pocket Watch Movement, which means the crown is at 12 and the subsidiary (small) seconds at 6 o'clock. This same movement can now be found in large wrist watches and when used as a wristwatch the crown is now at the 3 PM position and the small second can now be found at 9 PM.

Because of its size, this is a comfortable movement for the beginning watchmaker. Hand hole sizes 1.15 mm minute, 2.00 hour and 0.27 mm will work for second.

On Sale $169.00

order.gif  checkout.gif
Quantity   1 - 2     3 - 9     10 - 24     25+
Price $175.00 $163.00 $168.00 $165.00
On Sale! $169.00 $166.00 $162.00 $159.00

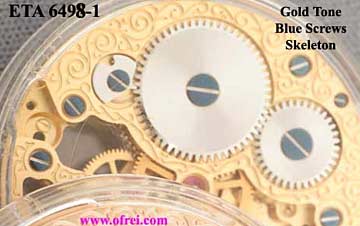

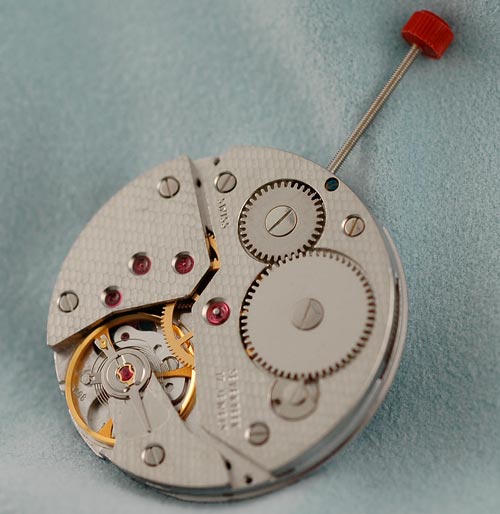

ETA 6498-1 Watch Movement, Plain Finish Plates With Novodiac Springs

These movements are now stamped ETA 6498-1. ETA owns the Unitas name and have made the Unitas movements now for almost 30 years. This is a 16.5 (36.5mm) ligne pocket watch movement that is now being sold as a wrist watch movement and has 17 jewels with Novodiac shock protection. If the crown is at 3 the subsidiary seconds will be at 6 o'clock. Hand sizes are 115/200/27, the lift angle of the balance is 44, 18,000 beats per hour. Because of its size, this is a comfortable movement for the beginning watchmaker.

On Sale $174.95

order.gif  checkout.gif
Quantity   1 - 2     3 - 9     10 - 24     25+
Price $186.00 $176.00 $172.00 $169.00
On Sale! $174.95 $169.95 $166.95 $161.95

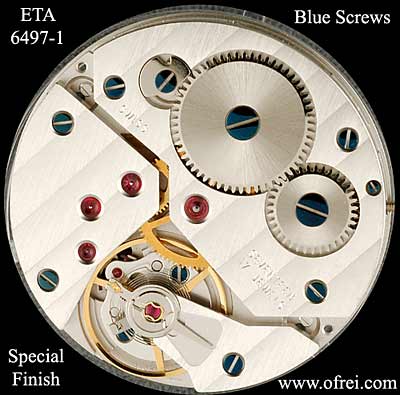

Special ETA 6497-1 Movement with Cotes Circulaires Finish & Blue* Screws

This special 6497-1 is a rhodium plated movement with blue* screws and decorated with a deluxe circular sun design finish. 16.5 ligne (36.6 mm), 4.5 mm thick pocket watch movement, 17 jewels, Incabloc, subsidiary seconds at 9 o'clock. Hand sizes are 115/200/27. Beats per hour 18,000 and the lift angle of the balance is 44.

*Movement screws have blue screw heads, while the 2 separate case screws that are provide do not have blue screw heads.


order.gif  checkout.gif


ETA 7751 Movement

The TimeZone Level 4 Course is based on the ETA 7751, 13.25 ligne size, 25 jewels, Incabloc shock protection, automatic, chrono, day, month calendar hand date with moonphase movement.

Hands sizes: Minute 1.20 mm, Hour 2.00 mm , the sweep 0.25 mm, register 0.20 mm, Calendar hand hole size at 2.50 mm.

The ETA Valjoux 7751 does take the same hour, minute, sweep and register hands sizes as the Omega 1152 and 1155. ETA made the 7751 movement under the Valjoux 7751 name from 1970's to 2002, when Swatch Group decided to retire the Valjoux name and call this movement the ETA 7751. No parts have changed only a name change took place.


order.gif  checkout.gif


Bergeon 6938 Dial Protection

For those who don't want to scratch and damage their dials while removing hands, this Bergeon dial protector is the tool to use. It's made of resistant synthetic material. Thickness of 0.15 mm. Color is off white.


order.gif  checkout.gif
Quantity   1 - 9     10 - 99     100+
Price $1.50 $1.20 $1.00
On Sale! $1.30 $1.08 $0.91


Plastic Movement Holders For Re-Casing 11 1/2 Ligne Movements

Movement ring assortment for re-casing popular 11 1/2 ligne Quartz and Mechanical Movements. Kit Includes 2 pieces movement ring for ETA 2824-2 11 1/2 movement with ring height of 4.60 mm. This assortment also includes ring for ETA 255.111, ETA 955.112, Ronda 7215, VX 42, Ronda 315, VX 43E for a total of 12 pieces.




Link To TZ Watch School Parts Page


Miscellaneous Watch Parts

Type in any keywords of a description or a name below to find a product.

If you have questions please call me at 510 599 4890. For those outside the USA the country code is 1.
Thanks, Bob Frei
