Miscellaneous Tools - 2

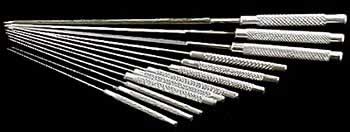

Bergeon 4254-P Cutting Broach Assortment with PVC Knurled Handle

Bergeon assortment of 12 cutting broaches with knurled handles. From numbers 42-80, 0.33 millimeters to 2.34 millimeters. Individual Bergeon Reorder Numbers 30544-80 0.34 mm, 30544-78 0.40 mm, 30544-76 0.45 mm, 30544-74 0.55 mm, 30544-70 0.70 mm, 30544-66 0.80 mm, 30544-62 0.95 mm, 30544-58 1.10 mm, 30544-54 1.40 mm, 30544-50 1.75 mm, 30544-46 2.00 mm, 30544-42 2.34 mm, measurement is taken 10 mm fron the start cutting area at the handle end.

FB-722
$72.90

order.gif  checkout.gif



Bergeon 30103 Compass in a Box

 This lovely item is what watchmakers traditionally used to determine if a watch was magnetized. The needle is jewelled and rides on a hardened steel point. The case is chromium plated brass and 13 millimeter in diameter. Simply open the lid of the box and wave the watch over the compass. When a watch is magnetized, one end of the compass needle is attracted, the other repelled. When the needle is attracted at both ends, there watch is not magnetized.

FB-2820
$68.00

order.gif  checkout.gif


Bergeon 30104 Compass without Box



FB-2821
$56.80

order.gif  checkout.gif




Broken Screw Extractor

 This is a very useful tool for removing screws that have broken off in a plate or bridge. The broken shaft of the screw is gripped from above and below (if possible) and turned out of the part. Supplied with 1 and 0.8 mm tips (two each), 0.4 through 0.7 tips are also available. Every serious watchmaker is going to break off a screw one day and should have this important tool.

FB-2832
$95.90

order.gif  checkout.gif


Replacement Broaches For FB-2832 0.4 x 0.5 mm

Priced per piece.

30209-A
$12.95

order.gif  checkout.gif



Replacement Broaches For FB-2832 0.6 x 0.7 mm

Priced per piece.

30209-B
$12.95

order.gif  checkout.gif



Replacement Broaches For FB-2832 0.8 x 1.0 mm

The FB-2832 Bergeon Screw Extractor is supplied with two of this size broaches.

30209-C
$12.95

order.gif  checkout.gif




Collet Tool (G)

  This tool allows installation of balance spring collets on the balance shaft with one end, and precise rotation of the collet with the other end. The hole diameter (to accomodate the balance shaft) is 0.70 millimeters on this (G) part. Available in other sizes, see below. These tools make adjustment of beat as simple as possible and are worth investing in.

FB-234
$36.95

order.gif  checkout.gif


Bergeon Collet Tool (M) 30017M

This tool allows installation of balance spring collets on the balance shaft with one end, and precise rotation of the collet with the other end. The hole diameter (to accomodate the balance shaft) is 0.55 millimeters on this (M) part.

FB-733
$48.70

order.gif  checkout.gif



Bergeon Collet Tool (P) 30017P

This tool allows installation of balance spring collets on the balance shaft with one end, and precise rotation of the collet with the other end. The hole diameter (to accomodate the balance shaft) is 0.45 millimeters on this (P) part.

FB-732
$48.70

order.gif  checkout.gif



Bergeon Collet Tool (TP) 30017TP

This tool allows installation of balance spring collets on the balance shaft with one end, and precise rotation of the collet with the other end. The hole diameter (to accomodate the balance shaft) is 0.35 millimeters on this (TP) part.

FB-731
$48.70

order.gif  checkout.gif

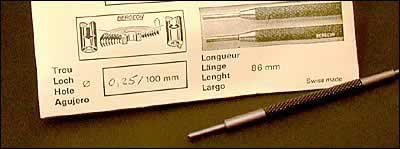

Bergeon Collet Tool (TTP) 30017TTP

This tool allows installation of balance spring collets on the balance shaft with one end, and precise rotation of the collet with the other end. The hole diameter (to accomodate the balance shaft) is 0.25 millimeters on this (TTP) part.

FB-730
$48.70

order.gif  checkout.gif




Grobet Escapement Files: Cut 8 Barrette

 Grobet Swiss-made Vallorbe Files, are recognized worldwide for their unsurpassed quality. They are extremely hard, provide exact shapes and sizes, and are very durable. Cut 8 is the finest grade, and useful for most fine watch work.

FB-780
$26.50

order.gif  checkout.gif


Grobet Escapement Files: Cut 8 Half-Round

 See FB-780 for description.

FB-781
$26.50

order.gif  checkout.gif



Grobet Escapement Files: Cut 8 Round

 See FB-780 for description.

FB-782
$26.50

order.gif  checkout.gif



Grobet Escapement Files: Cut 8 Square

 See FB-780 for description.

FB-783
$26.50

order.gif  checkout.gif



Grobet Escapement Files Cut 8, 3 Square

 See FB-780 for description.

FB-783
$26.50

order.gif  checkout.gif




Swiss-Made Saw

 This beautifully-made saw frame accomodates blades up to five inches (130 mm) and provides a depth of 2 3/4 inches (70 mm). The three quick release locks provides accurate, fast, secure adjustment, and the padded rubber handle a comfortable grip. This is an elegant, lifetime solution for precise cutting tasks. Blades in various cuts are sold separately.

FB-2800
$17.35

order.gif  checkout.gif



Bergeon Hand Fitting Tool

 This convenient hand setting tool provides a metal base holding a handle and eight tips with hole sizes of .30, .50, .70, 1.15, 1.50, 1.70 mm, solid steel, and solid nylon. It's a very convenient setup.

FB-420
$89.10

order.gif  checkout.gif

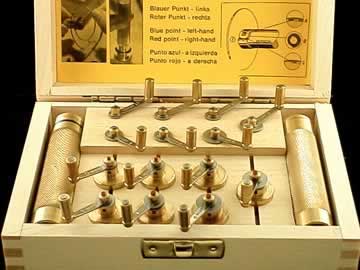

Bergeon #5355 Mainspring Winder Set

Set of Mainspring Winders for left and right hand mainsprings. Set contains 7 drums size 0 (5.6 mm dia.) to size 6 (9.8 mm), 7 each right and left hand arbors, two handles, one right and one left.

Berg-5355
$698.00

order.gif  checkout.gif



$923.00

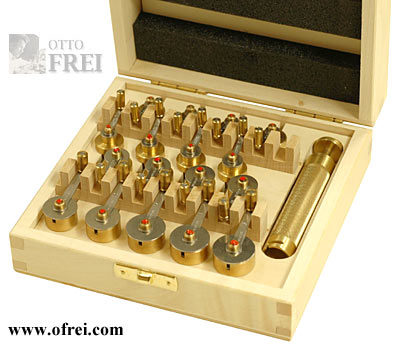

Bergeon 2795 Mainspring Winder Boxed Set

This boxed set of beautifully made brass winders is an extravagance, but a useful one for the serious watch maker. For right-hand mainsprings, arbors and drums are provided for all barrel sizes 00 through 15. This provides correct sizes for everything from very small women's calibers to large pocket watches. Once the mainspring is wound into the winder, it may be ejected into the barrel with a push of the plunger on the top of the winder. The mainspring may be perfectly wound and inserted in the barrel entirely without touching it.

FB-2842
$923.00

order.gif  checkout.gif



Horotec Rack Press With Screw Control, Boxed Set w/43 Dies

If you like to use nylon dies and want a first class press then you should buy this model. The lever on the MSA06.150 places the dies in close position, then you lock it in place and screw the knob to slowly lower the dies. For installing crystal and closing case back. This is a great tool!

The complete kit comes with the press MSA06.150 which uses the new Horotec Delrim dies with threaded metal centers which screw on the press, 4 sets of dies numbers MSA 06.522, MSA06.521, MSA06.520 and MSA07.106.

MSA06.152
$1,028.00

order.gif  checkout.gif



Bergeon Cutter for Regulating #1844-21

Slip movement supplied with one .75 mm high-speed steel, oversized shank twist drill.

FB-718
$42.50

order.gif  checkout.gif



$41.20
Bergeon Balance Holder 30106

 This nicely-made, nicle-plated brass balance holder is 35 millimeters in diameter. Both the tapered slot and perimeter holes may be used to hold the balance assembly and the spring stud.

FB-130
$41.20

order.gif  checkout.gif

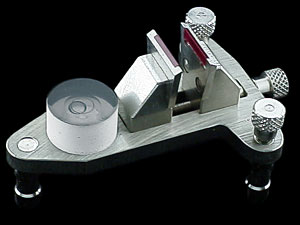

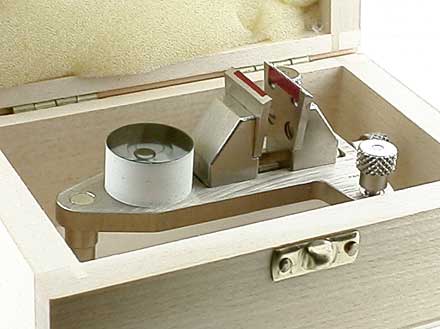

Balance Poising Tool

This beautifully made balance poising tool is the classic approach to poising balances: the balance staff is set across a pair of razor-edge ruby jaws and the balance is adjusted until there is no "low" spot. The tool is adjustable for different staff lengths and includes a bubble level for leveling of the tool. I occassionally use mine, but even if you never poise a balance, this tool might be worth the price for the beauty and craft alone.


FB-2850
$319.00

order.gif  checkout.gif



$89.95

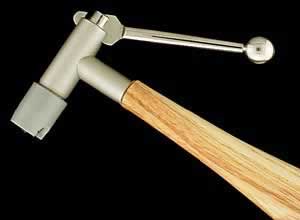

Bergeon Cannon Pinion Remover with Lever and Wooden Handle

For small and large watches, adaptable to all sizes

FB-741
$89.95

order.gif  checkout.gif



Square Dial Dots

Dial Dots are very popular tool used when doing Quartz Movement Exchanges and retrofitting watches. Use dial dots when, the dial feet have to be removed on the dial in order to use the same dial on a new movement that has feet in different locations.

FB-DIALDOTSQUARE
$4.95



Type in any keywords of a description or a name below to find a product.

If you have questions please call me at 510 599 4890. For those outside the USA the country code is 1.
Thanks, Bob Frei
