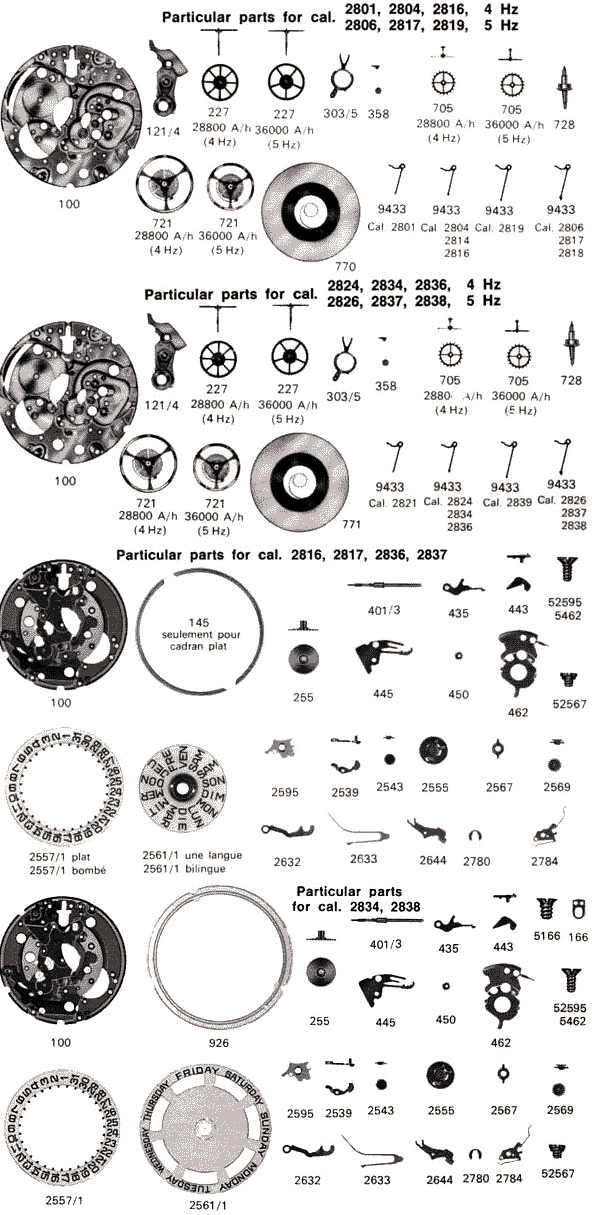

ETA 2801 & 2836 Parts Page 2

List of Materials

Ebauches Part Numbers – USA Terms,

# 100 Plate, # 105 Barrel Bridge, # 110 Train Wheel Bridge, # 121/3 Balance Bridge (cock) for stud holder and for shock-protecting devices, flat hairspring, # 121/4 Balance Bridge (cock) for stud holder and for shock-protecting devices, flat hairspring, # 125 Pallet, Bridge (Cock), # 145 Support for flat dial (Dial Rest), # 163/1 Center Stud (Center Pipe), # 166 Casing clamp, # 182 Barrel & Cover, # 195 Barrel Arbor, # 203 Intermediate Wheel, # 210 Third Wheel, #227 Sweep Second 4th Wheel, # 242 Cannon pinion with driving wheel, # 255 Hour Wheel, # 260 Minute Wheel, # 303/2 Two-piece regulator for adjustable stud-holder, for flat hairspring, # 303/5 Two-piece regulator for stud-holder and adjusting device, for flat hairspring, # 358 Adjuster for regulator, # 375 Adjustable stud holder, # 401 Winding Stem, # 401/3 Winding stem with Helicoidal Square, # 407 Clutch Wheel, # 410 Winding Pinion, # 415 Ratchet Wheel, # 420 Crown Wheel, # 422 Crown Wheel Ring, # 425 Click, # 430 Click Spring, # 435 Clutch Lever (yoke), # 440 Set Spring (Yoke Spring), # 443 Setting Lever, # 445 Set Bridge (Setting Lever Spring), # 450 Set Wheel, # 462 Minute Cock (Minute Work Cock, Minute Train Bridge), # 705 Escape wheel and pinion with straight pivots, # 710 Pallet Folk w/arbor, # 714 Pallet Arbor, # 721 Balance Complete with flat hairspring regulated, # 728 Balance Staff with shock-protecting device, # 730 Roller, # 770 Mainspring, # 771 Mainspring with brake spring, # 926 Enlargement Ring, # 1134 Frame Work for Automatic Device, # 1141 Lower Bridge for Auto Device, # 1143 Oscillating Weight, # 1481 Reduction Gear, # 1482 Driving Gear for Ratchet Wheel, # 1488 Pawl Winding Wheel complete w/pinion, # 1497 Ball Bearing for Oscillating Weight, # 1998 Bearing Wheel for Oscillating Weight, # 1530 Additional Pawl Winding Wheel w/o pinion (Auxiliary reversing wheel), # 2539 Date Corrector Lever, # 2543 Intermediate Date Wheel, # 2555 Calendar Driving Wheel, # 2556 Date Indicator Driving Wheel, # 2557/1 Date Indicator w/dial, # 2561/1 Day Star w/dial Disk. # 2566 Date Corrector, # 2567 Day Corrector, # 2569 Double Corrector, # 2573 Day Jumper Spring, # 2575 Date Jumper Spring, # 2576 Date Jumper, # 2577 Day Jumper, # 2595 Guard for Jumper Date, # 2632 Unlocking Yoke for Calendar Indicators (Date unlocking yoke), # 2633 Unlocking Yoke Spring for Calendar Indicators (Unlocking yoke spring), # 2644 Unlocking Yoke Maintaining Plate, # 2780 Gib for Day Disk (Day indicator spring-clip), # 2784 Double Jumper, # 9433 Stop Lever, # 5101 Case Screw, # 5102 Case Screw special, # 5105 Barrel Bridge Screw, # 5110 Train Wheel Bridge Screw, # 5121 Balance Bridge (cock) Screw, # 5125 Pallet Bridge (cock) Screw, # 5166 Casing Clamp Screw, # 5415 Ratchet Wheel Screw, # 5420 Crown Wheel Screw, # 5445 Set Bridge Screw, # 5462 Minute Work Cock Screw, # 5738 Hairspring Stud Screw, # 51134 Screw for fame work of automatic device, # 51141 Lower bridge screw for automatic device, # 51497 Screw for ball bearing wheel for oscillating weight, # 51498 Screw for bearing wheel of oscillating, # 52567 Day corrector screw, # 52595 Screw for date jumper guard.


ETA 2801 & 2836 Parts Page 1



ETA 2801 & 2836 Technical Data & Parts List



Parts ETA 2801-2, 2804-2, 2836-2 Image
